3 Pole DIN Rail Mount Circuit Breaker, 40 Amp 240V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C40

3 Pole DIN Rail Mount Circuit Breaker, 40 Amp 240V AC Miniature Circuit Breaker, Thermal Magnetic Trip AC Disconnect Switch MCB C40

Product form

FUNCTIONS: Used to protect 240V AC circuit from overload and short circuit damage, and can also be used for control... Read more

Out of stock, 1-3 weeks

$22.15 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jun 16, 2026 23:59:00 -0500
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

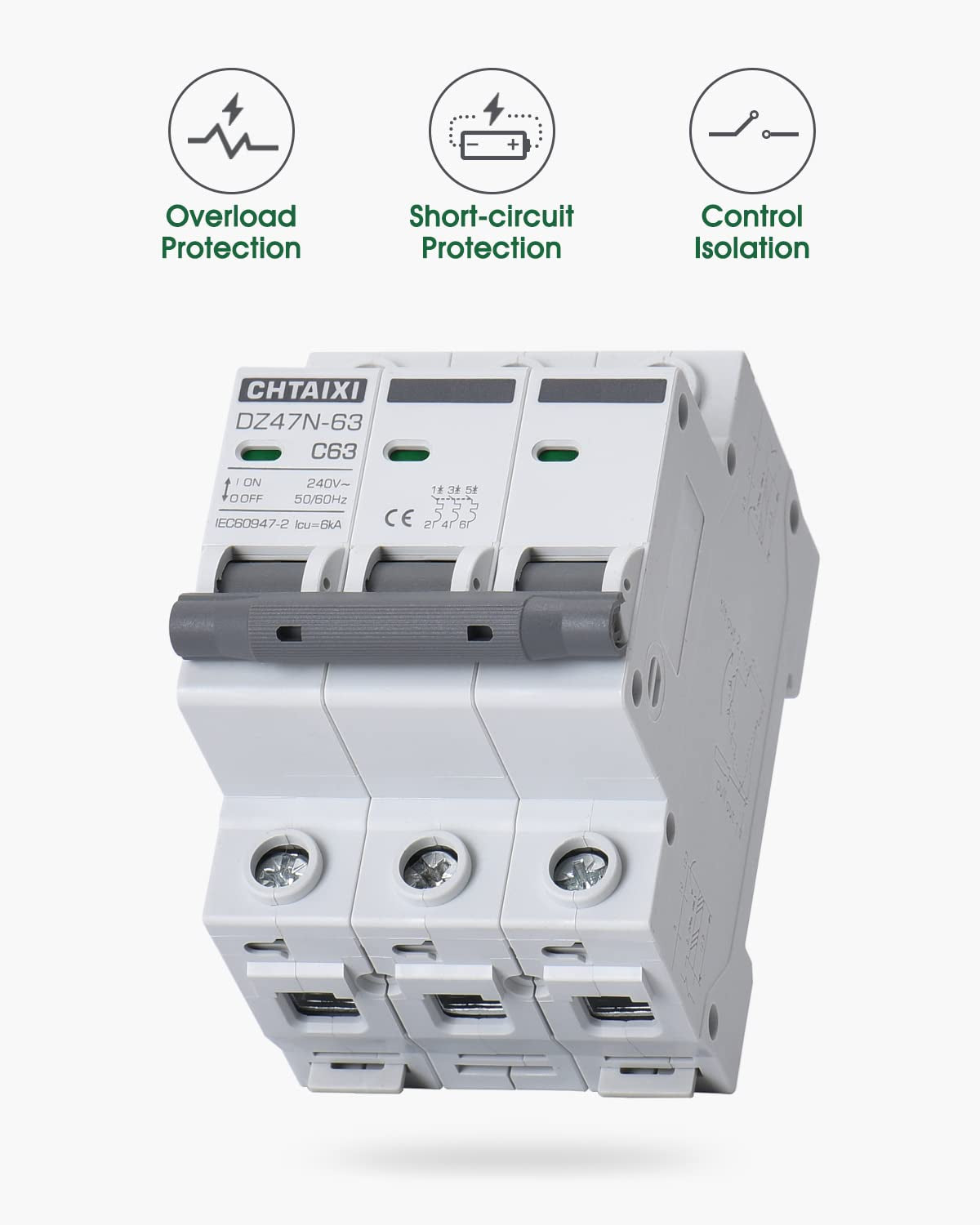

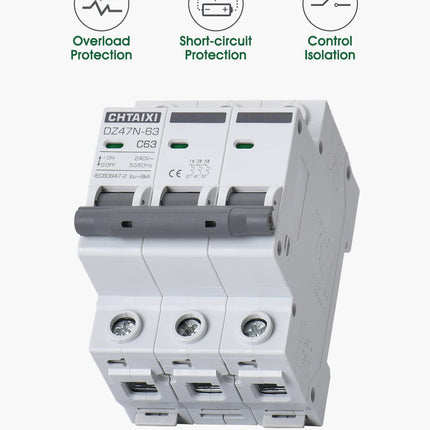

    • FUNCTIONS: Used to protect 240V AC circuit from overload and short circuit damage, and can also be used for control and isolation.

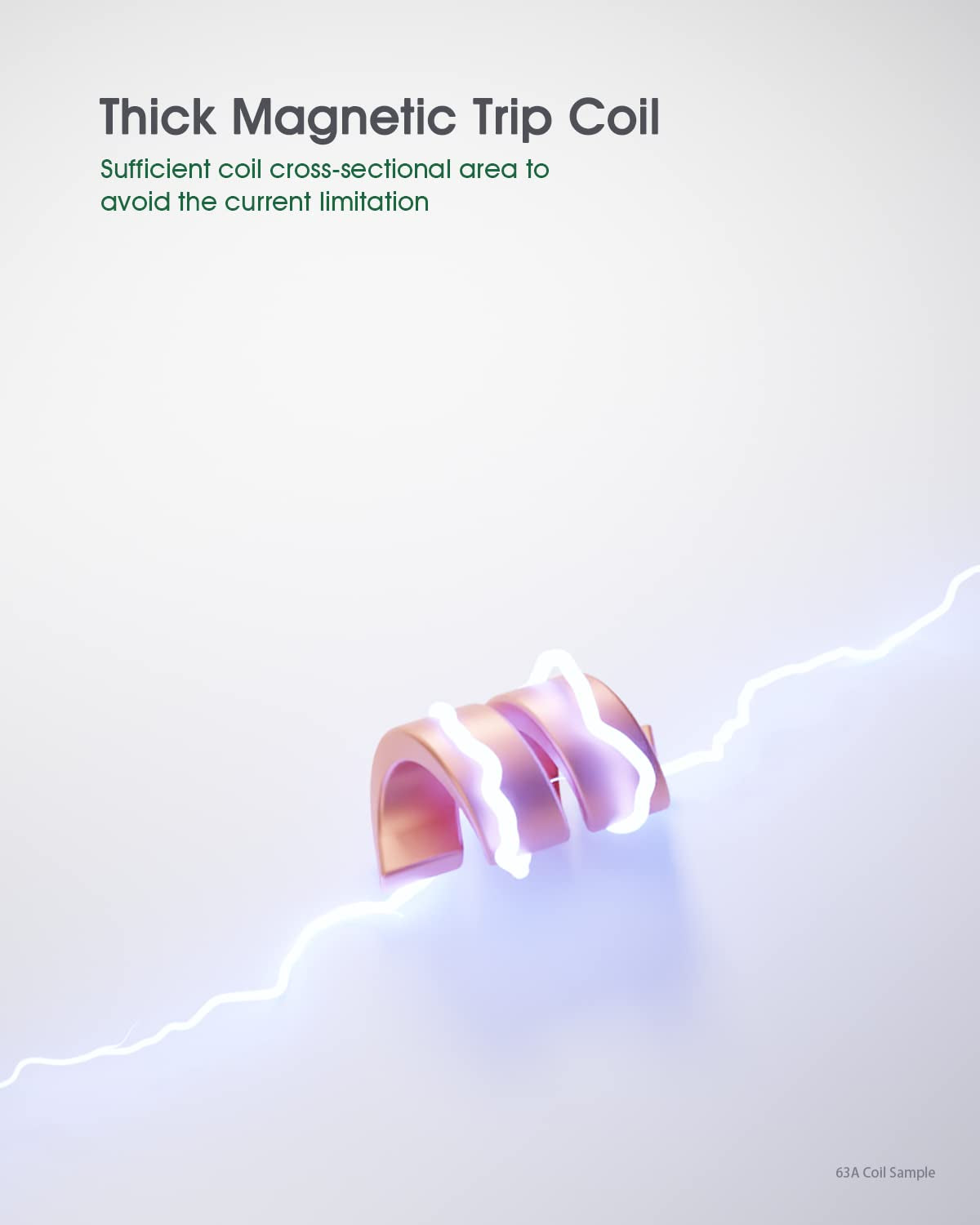

    • CURVE C: Magnetic trip range 5-10 times rated current.
    • QUALITY: Silver alloy contacts, flame retardant material shell, color indicator.
    • APPLICATION: Can be used in home circuits, 3 phase circuit, or other 50/60Hz AC systems.
    • INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).

    Product description

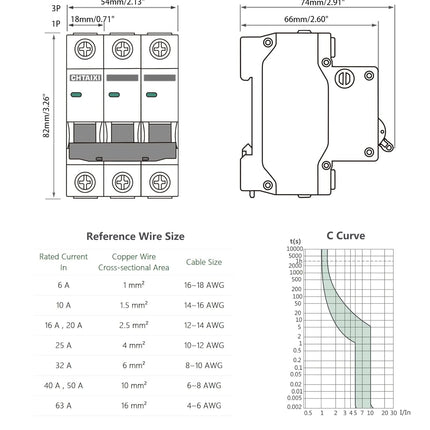

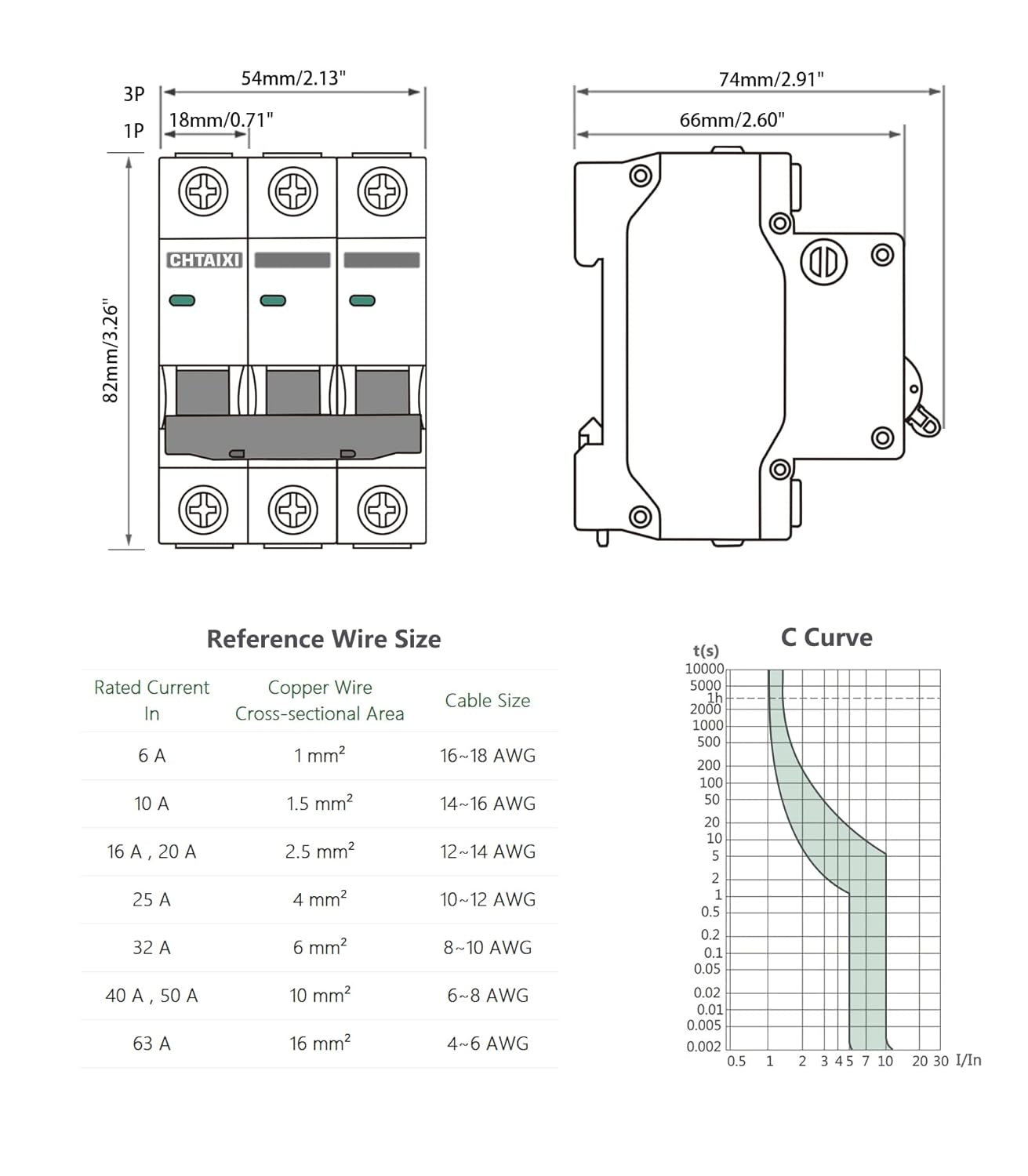

    Specifications

    Product type: AC Miniature Circuit Breaker

    Rated operational voltage: 240V / 480V AC (optional)

    Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional)

    Poles: 3P

    Trip unit technology: Thermal-magnetic

    Curve code: C

    Breaking capacity: 6 kA (240V) / 5 kA (480V) Ics=Icu

    Uimp: 4 kV

    Mechanical durability: 10000 cycles

    Electrical durability: 4000 cycles

    Operating temperature: -13°F(-25℃) ~ 140°F(60℃)

    Mounting support: 35 mm DIN rail

    Tightening torque: 2.5 N.m

    Standard: IEC60947-2

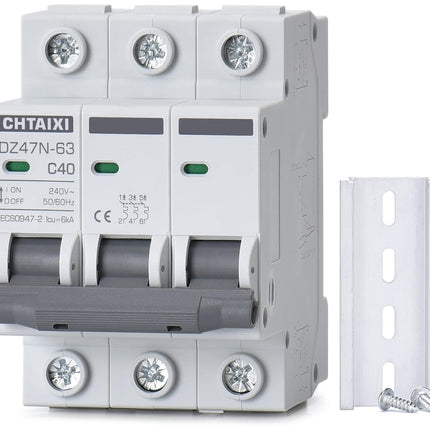

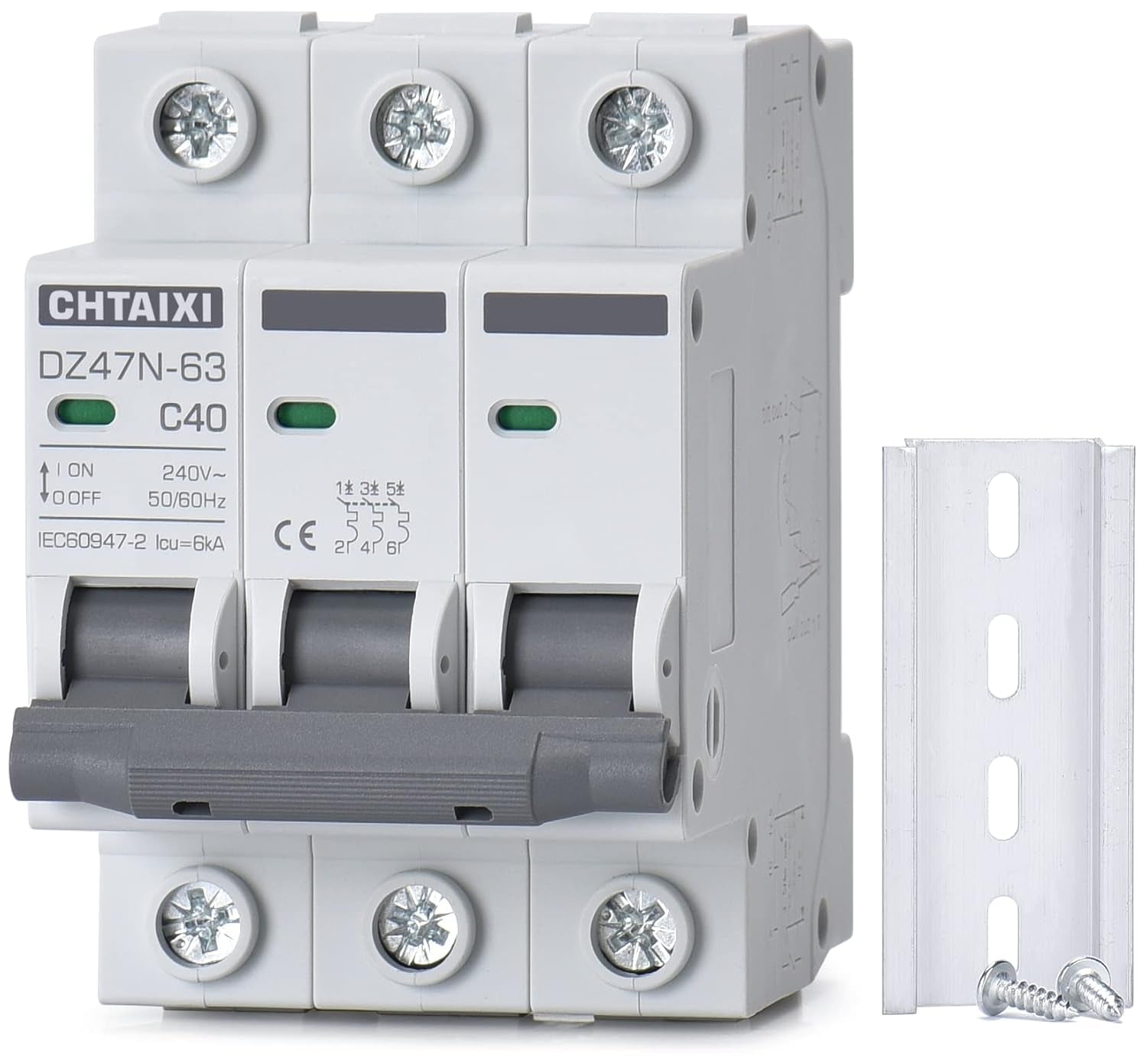

    Package includes

    1 x AC miniature circuit breaker

    1 x DIN rail

    2 x Screws

    Quality Products to Protect Your Electricity Safety

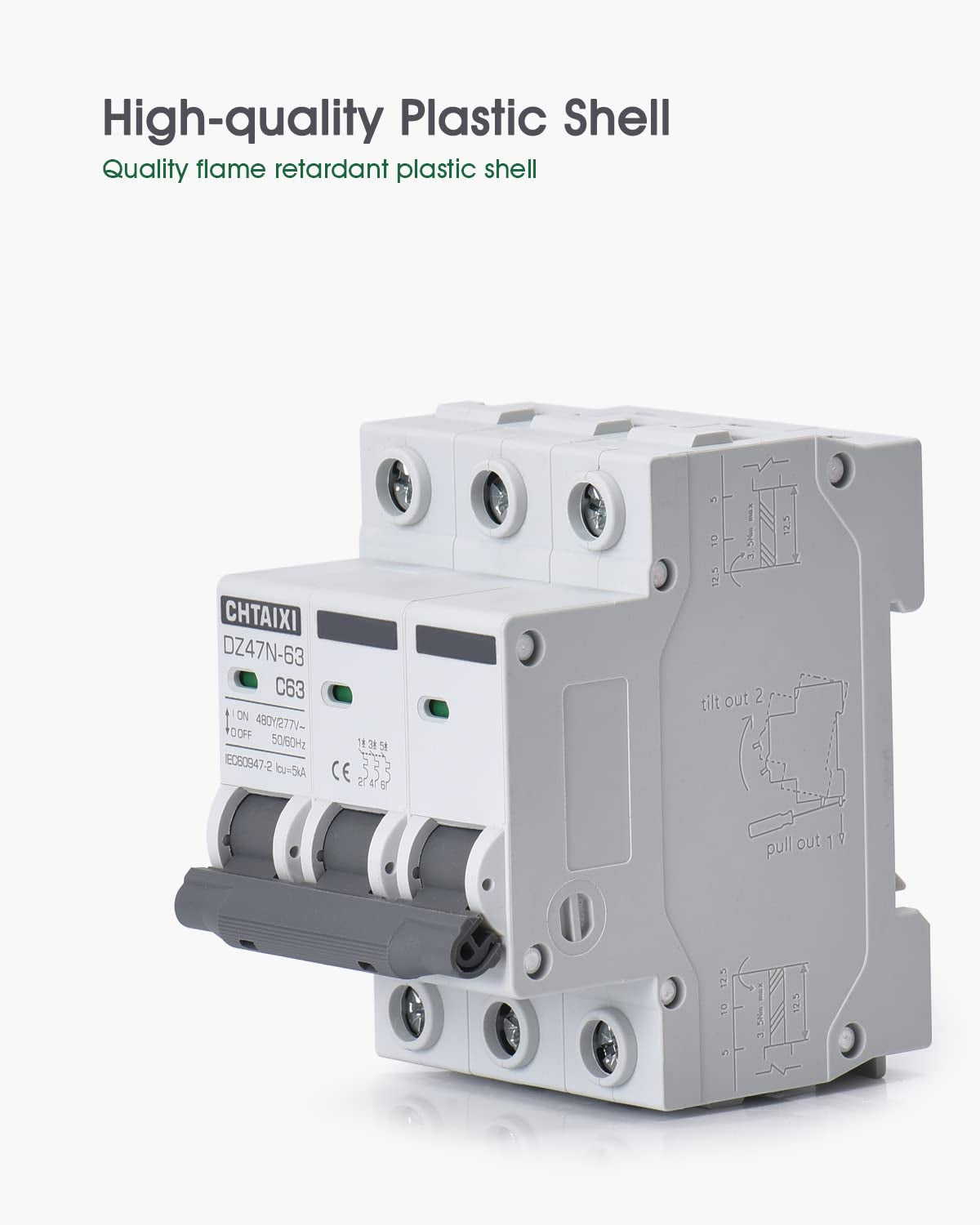

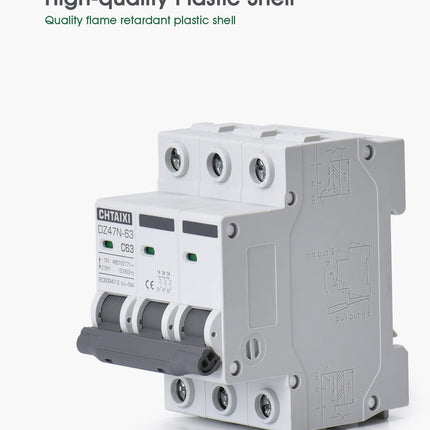

    Quality Plastic Shell

    • Flame retardant material, sturdy and durable.

    Indicator Window

    • Green Indicator: OFF
    • Red Indicator: ON

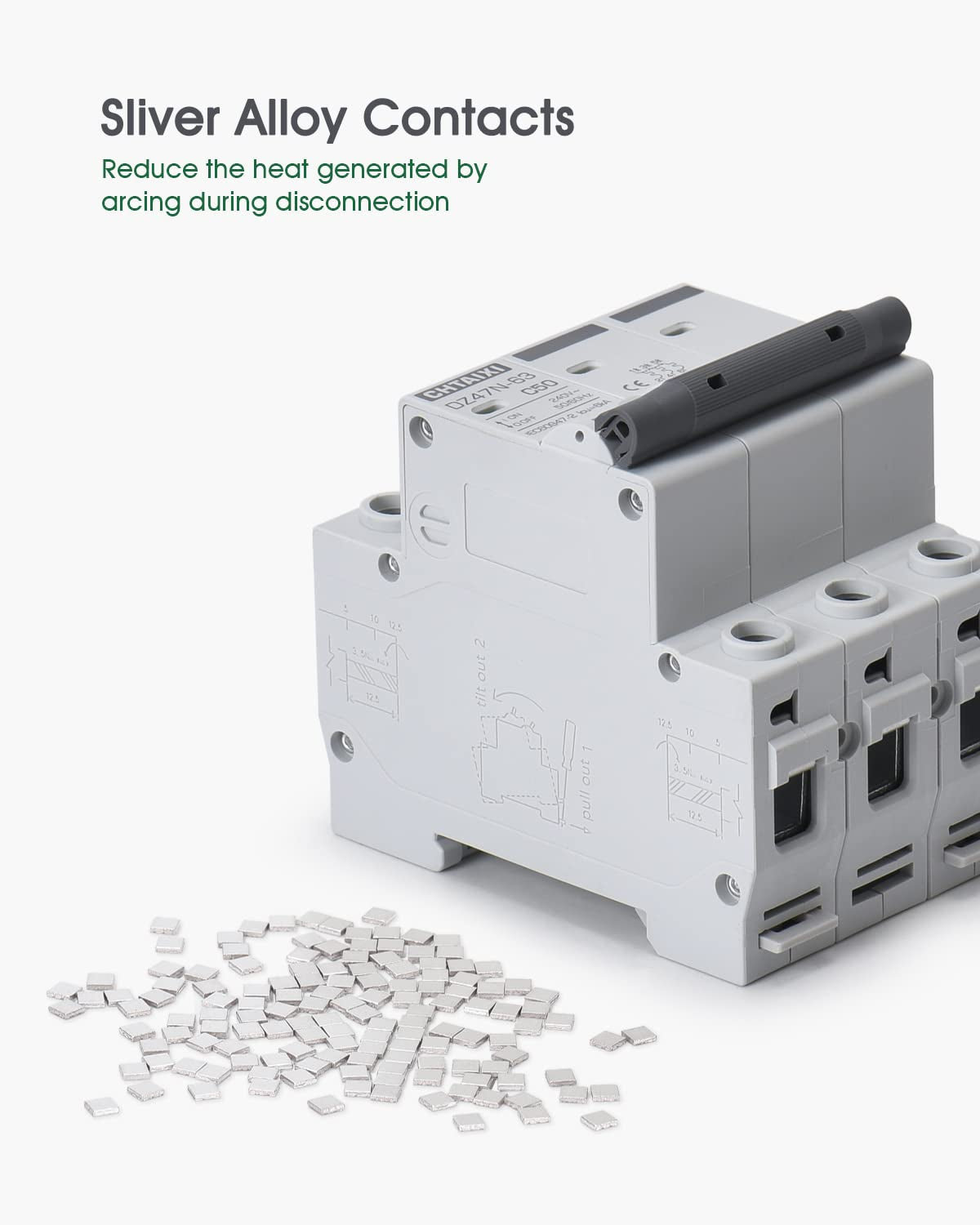

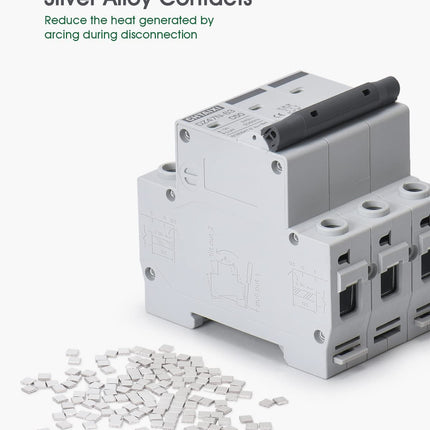

    Silver Alloy Contacts

    • Reduce the heat generated by arcing during disconnection.
    • Reduce the wear of the contacts.
    • Improve electrical durability.

    Installation

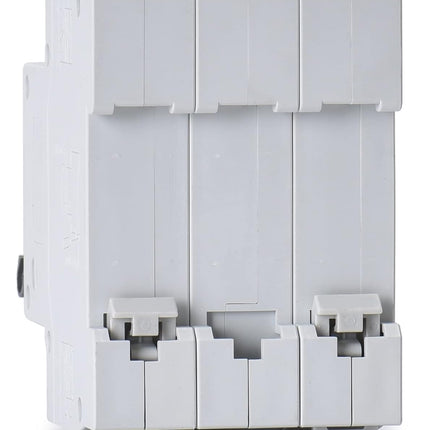

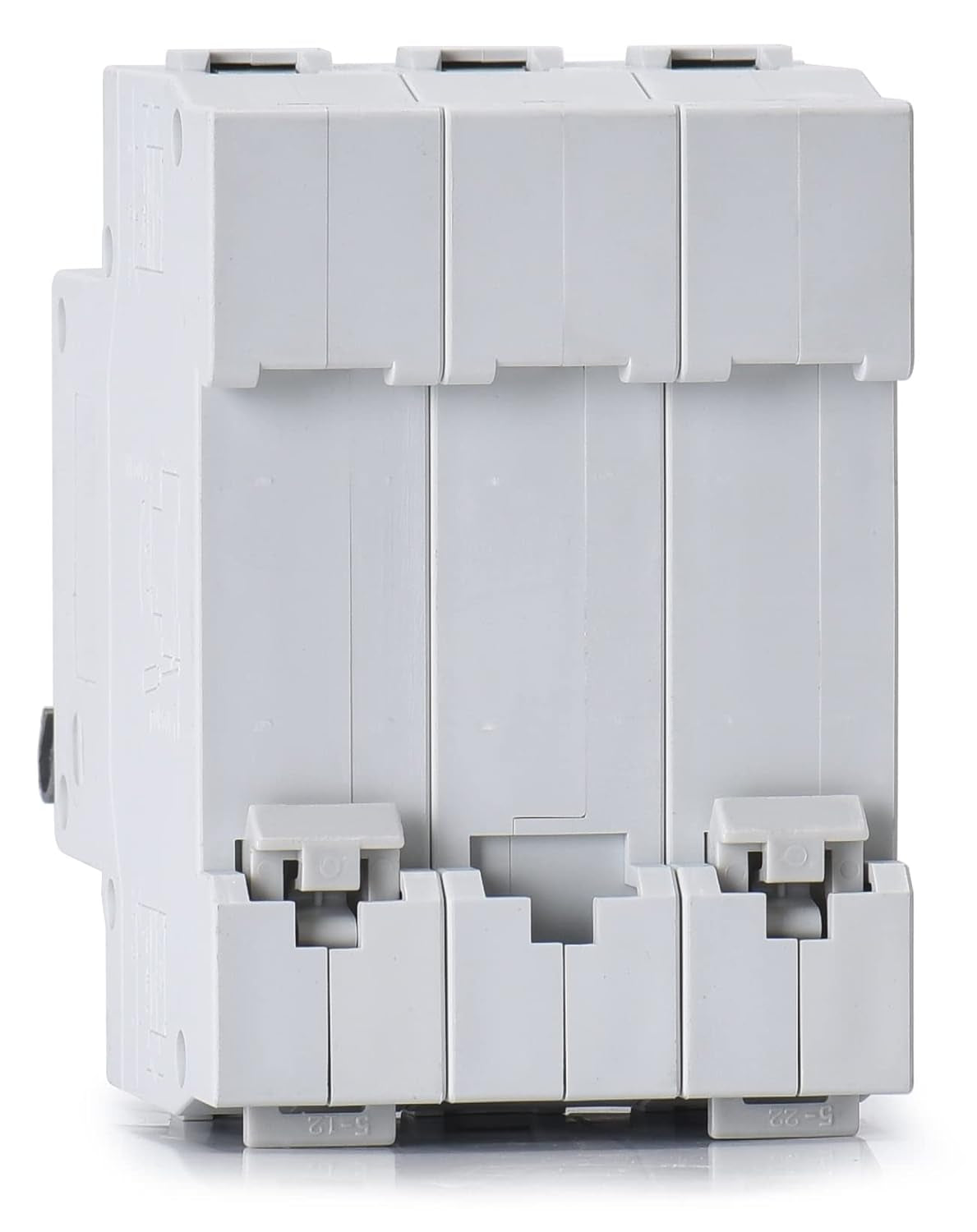

    DIN Rail

    • Install the 35mm DIN rail horizontally in a stable environment.

    Installation

    • Hang the circuit breaker slot on the DIN rail.
    • Push the lower end of the circuit breaker into the DIN rail.

    Dismounting

    • Push the circuit breaker upward.
    • Turn the upper end of the circuit breaker out of the DIN rail.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor
